100 kN Universal Wedge Grip
100 kN Universal Wedge Grip

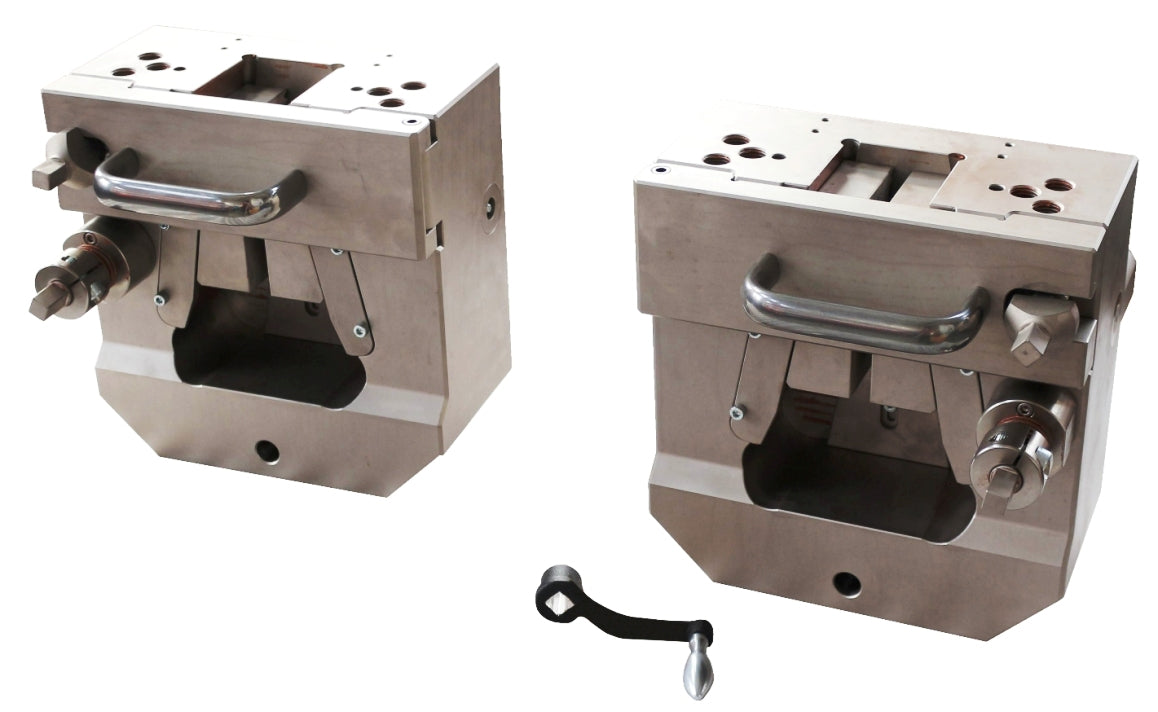

The G109-100 universal wedge grip provides 100 kN tensile force clamping capacity across flat and round specimens. Engineered with an 11° low wedge angle it applies exceptional self-clamping hold on aluminium copper and soft steels up to 30 HRC.
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Technical Specifications & Overview +
- Model Number:
- G109-100
- Body Material:
- Steel, nickel-plated
- Load Capacity:
- 100 kN (22,500 lbf)
- Temp Range:
- 0°C to +70°C
- Max Opening:
- 0–50 mm (0–1.97 in)
- Jaw Surface:
- Pyramid, V-Groove, Diamond-Coated
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Low wedge angle (11°). Operated via crank handle or cordless power tool.
- Applications:
- Tensile testing of aluminum, copper, and low strength steel up to 30 HRC
- Primary Materials:
- Light Metals, Copper, Low Strength Steel
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G109-100 universal wedge grip provides 100 kN tensile force clamping capacity across flat and round specimens. Engineered with an 11° low wedge angle it applies exceptional self-clamping hold on aluminium copper and soft steels up to 30 HRC.
Expert Engineering Note
Operated by hand crank or cordless electric screwdriver via rear-side gearing for fast setup in short test frames. Standard Af318 or Af40 female socket.
