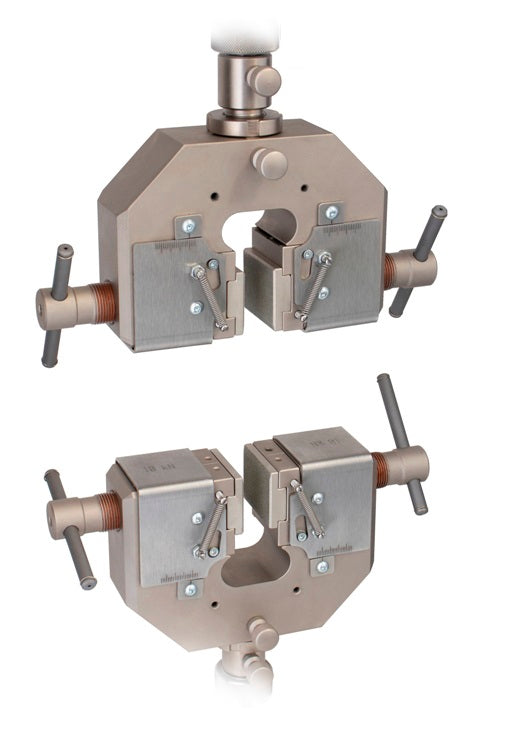

10 kN Screw Action Wedge Grip
10 kN Screw Action Wedge Grip
The G127-10 screw action wedge grip combines manual screw pre-tensioning with self-tightening wedge action for 10 kN tensile testing. Specimen is pre-clamped via screw mechanism then automatically increases holding force under axial load.
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Technical Specifications & Overview +
- Model Number:
- G127-10
- Body Material:
- Steel, nickel-plated
- Load Capacity:
- 10 kN (2,250 lbf)
- Temp Range:
- -70°C to +180°C
- Max Opening:
- 0–13 mm (0–0.51 in)
- Jaw Surface:
- Pyramid, V-Groove
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Combines screw pre-tensioning with wedge action. Supports asymmetrical clamping for shear tests.
- Applications:
- Tensile and shear testing of difficult elastic materials and asymmetrical samples
- Primary Materials:
- Plastics, Elastomers, Light Metals
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G127-10 screw action wedge grip combines manual screw pre-tensioning with self-tightening wedge action for 10 kN tensile testing. Specimen is pre-clamped via screw mechanism then automatically increases holding force under axial load.
Expert Engineering Note
Dual-principle design prevents initial specimen slip on difficult elastomeric or slippery samples. Disengageable jaw linkage allows offset positioning for shear testing. Standard Af159 socket.
