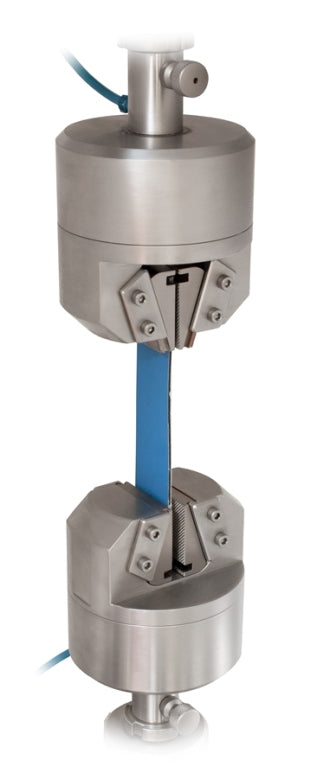

10 kN Pneumatic Wedge Grip
10 kN Pneumatic Wedge Grip
The G175-10 pneumatic wedge grip delivers 10 kN tensile capacity with a self-intensifying clamping mechanism. Engineered with centric jaw movement to maintain precise axial sample alignment during testing of hard steel foils polymers and fiber-reinforced specimens.
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Technical Specifications & Overview +
- Model Number:
- G175-10
- Body Material:
- Stainless steel
- Load Capacity:
- 10 kN (2,250 lbf)
- Temp Range:
- -70°C to +280°C
- Max Opening:
- 0–16 mm (0–0.63 in)
- Jaw Surface:
- Pyramid, V-Groove
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Pneumatic wedge grip body with self-intensifying clamping mechanism.
- Applications:
- Tensile testing of hard steel foils, plastics, fiber-reinforced rubber, and slippery coupons
- Primary Materials:
- Plastics, Composites, Metals, Rubber
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G175-10 pneumatic wedge grip delivers 10 kN tensile capacity with a self-intensifying clamping mechanism. Engineered with centric jaw movement to maintain precise axial sample alignment during testing of hard steel foils polymers and fiber-reinforced specimens.
Expert Engineering Note
Self-intensifying wedge mechanism increases clamping force proportionally as tensile load rises, preventing specimen slippage. Standard Af159 or Af20 adapter connection.
