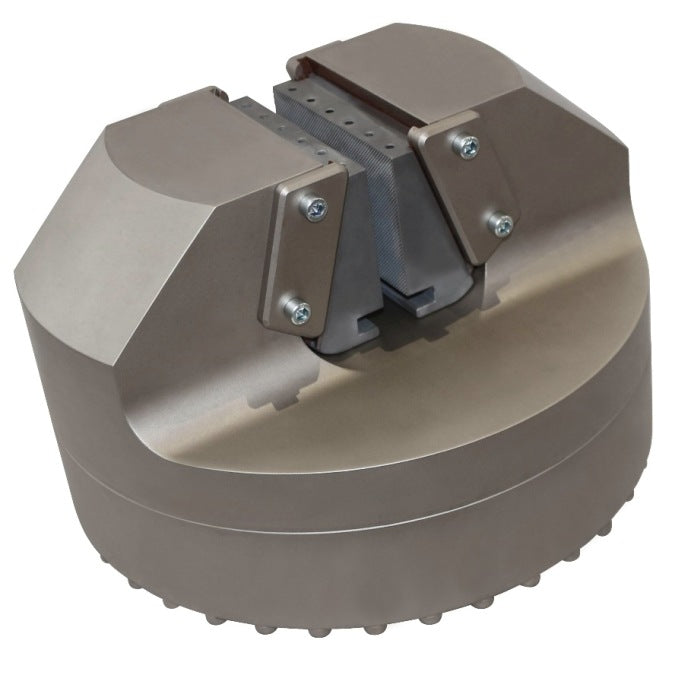

The G175-100 high-capacity pneumatic wedge grip yields 100 kN tensile capacity and up to 274 kN clamping load at 15 bar air supply. Built with a high-rigidity nickel-plated steel body for heavy structural metals and composites.
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Technical Specifications & Overview +
- Model Number:
- G175-100
- Body Material:
- Steel, nickel-plated
- Load Capacity:
- 100 kN (22,500 lbf)
- Temp Range:
- -30°C to +180°C
- Max Opening:
- 0–32 mm (0–1.26 in)
- Jaw Surface:
- Pyramid, V-Groove
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Pneumatic wedge grip body with self-intensifying clamping mechanism.
- Applications:
- Heavy-duty tensile testing of high-strength alloys, structural composites, and thick plate
- Primary Materials:
- High-Strength Alloys, Structural Composites
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G175-100 high-capacity pneumatic wedge grip yields 100 kN tensile capacity and up to 274 kN clamping load at 15 bar air supply. Built with a high-rigidity nickel-plated steel body for heavy structural metals and composites.
Expert Engineering Note
Self-aligning wedge geometry maintains true axial pull. Operating pressure rated from 7 to 15 bar. Standard Af40 connection socket.
