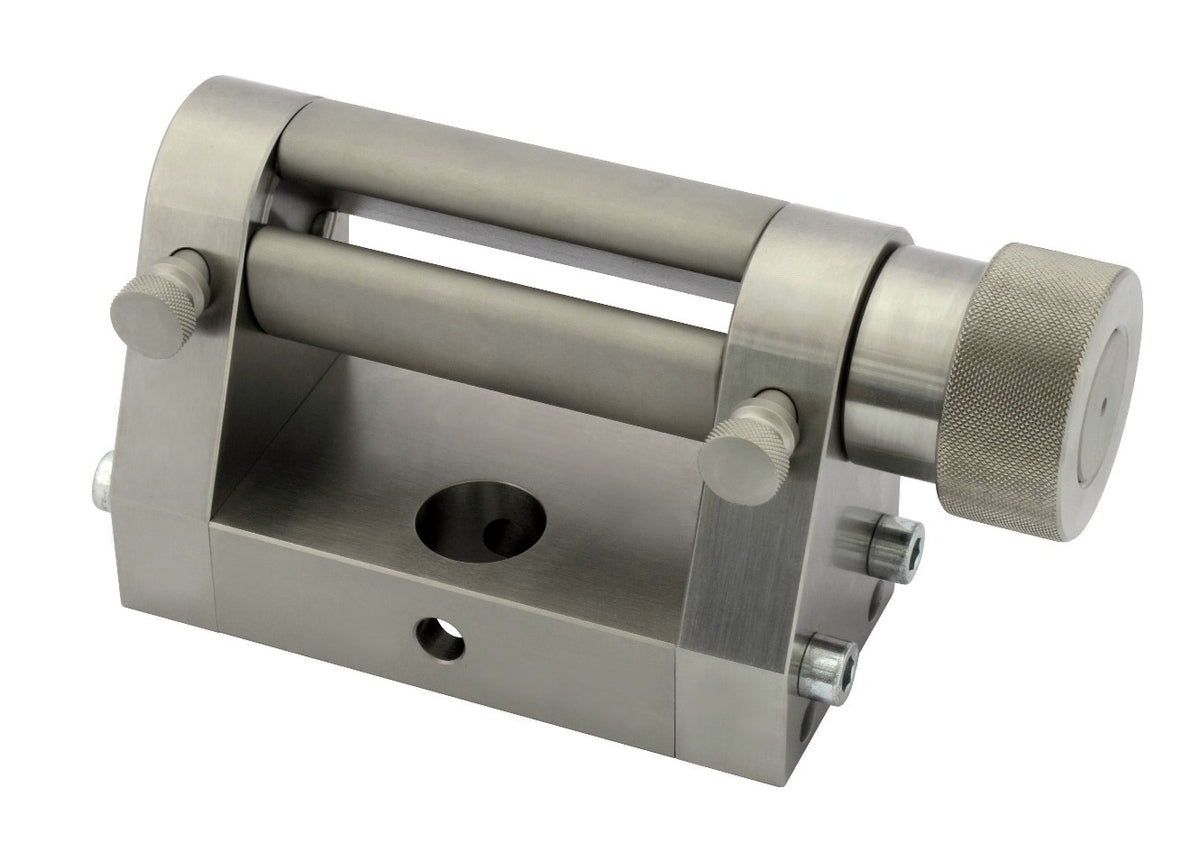

100 kN Split-Drum Ribbon Grip (60 mm Roll, 120 mm Width)
100 kN Split-Drum Ribbon Grip (60 mm Roll, 120 mm Width)
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Technical Specifications
- Model Number:
- G222-60-120
- Load Capacity:
- 100 kN (22,500 lbf)
- Temp Range:
- -40°C to +280°C
- Max Opening:
- 0–11 mm (0–0.43 in)
- Jaw Surface:
- Blank (Smooth Surface)
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Heavy-duty split-drum roller (Ø60 mm x 120 mm wide) for wide high-strength specimens requiring capstan stress reduction.
- Applications:
- Heavy tensile testing of wide industrial webbing, geotextile sheets, glass fiber HDPE tapes, and composite bands
- Primary Materials:
- Wide Webbing, Geotextiles, Composite Tapes
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview

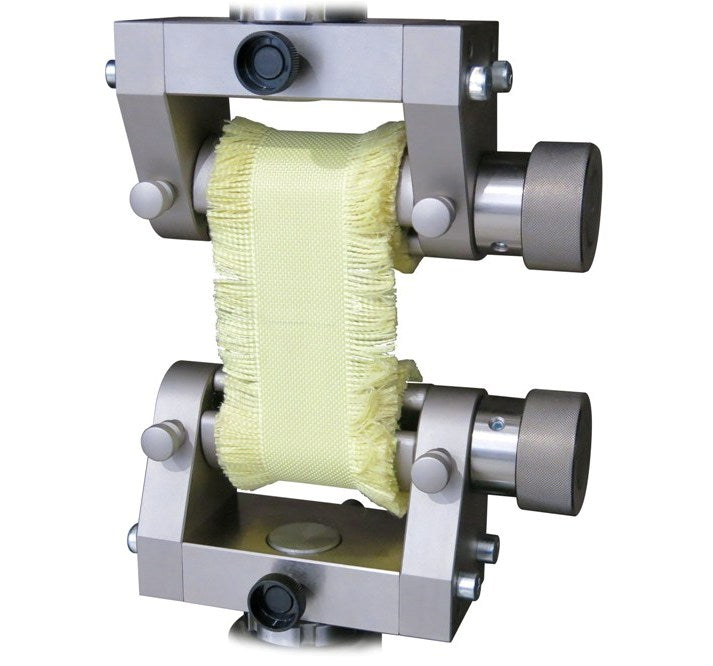

The G222-60-120 ribbon grip combines a Ø60 mm split-drum capstan roller with a 120 mm specimen width capacity rated for 100 kN. Designed for tensile testing on wide industrial webbing, geotextiles, and composite bands.
Expert Engineering Note
Large specimen capacity accommodates wide high-strength materials while capstan geometry mitigates jaw breaks.
