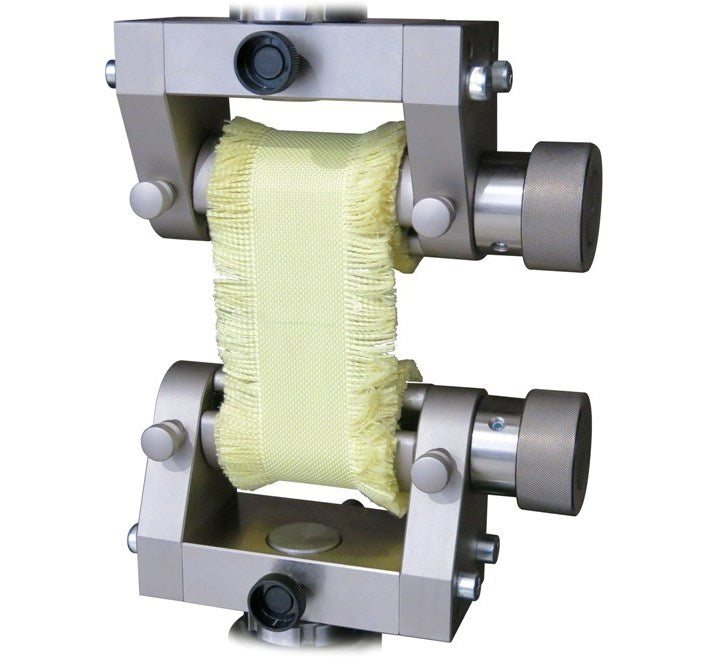

100 kN Split-Drum Ribbon Grip (60 mm Roll, 80 mm Width)
100 kN Split-Drum Ribbon Grip (60 mm Roll, 80 mm Width)
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Technical Specifications
- Model Number:
- G222-60-80
- Load Capacity:
- 100 kN (22,500 lbf)
- Temp Range:
- -40°C to +280°C
- Max Opening:
- 0–11 mm (0–0.43 in)
- Jaw Surface:
- Blank (Smooth Surface)
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Heavy-duty split-drum roller (Ø60 mm x 80 mm wide) engineered for 100 kN loads with 910 mm minimum sample length.
- Applications:
- Heavy tensile testing of high-strength synthetic webbing, industrial lifting straps, and heavy technical textiles
- Primary Materials:
- Webbing, Lifting Straps, Technical Textiles
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview

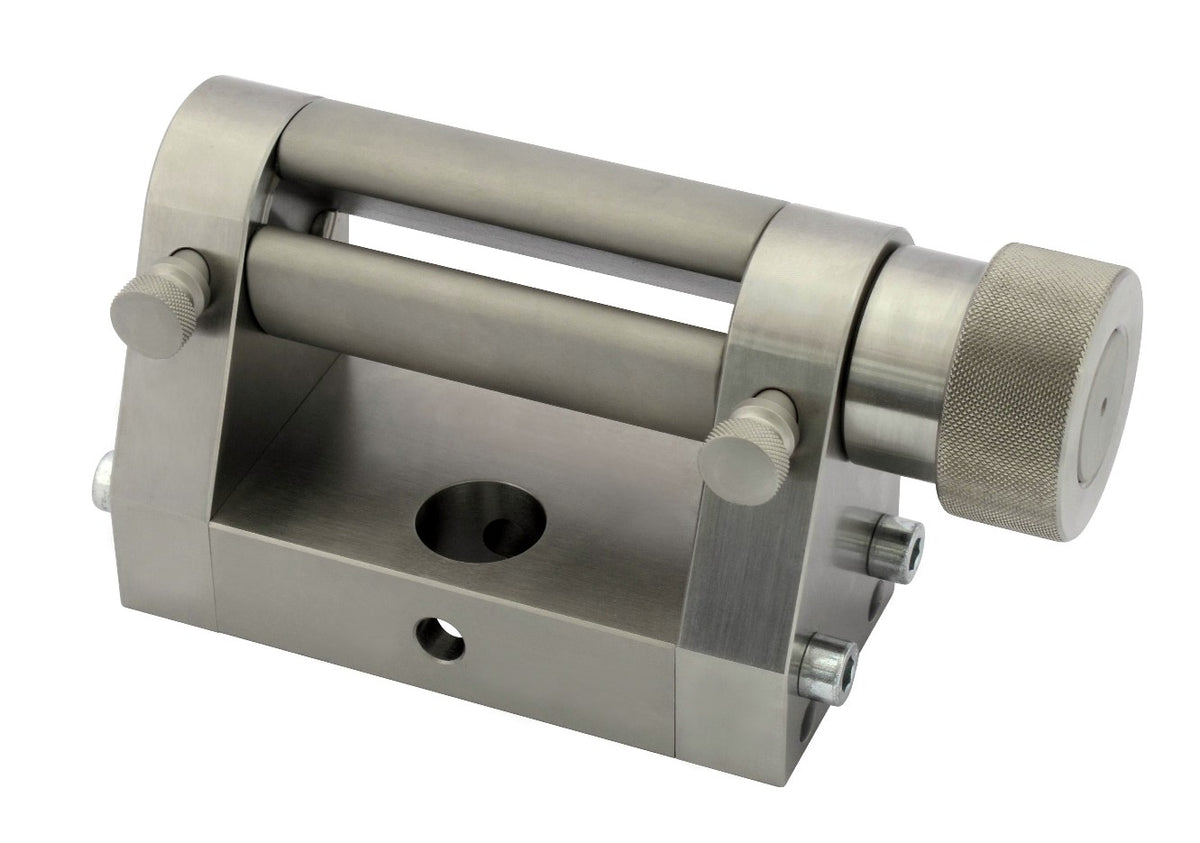

The G222-60-80 ribbon grip features a Ø60 mm split-drum capstan roller rated for 100 kN tensile capacity. Engineered for testing high-strength synthetic webbing and industrial lifting straps up to 80 mm wide and 11 mm thick.
Expert Engineering Note
Capstan friction wrapping converts tensile force into exponential holding friction along the 910 mm minimum wrapped sample.
