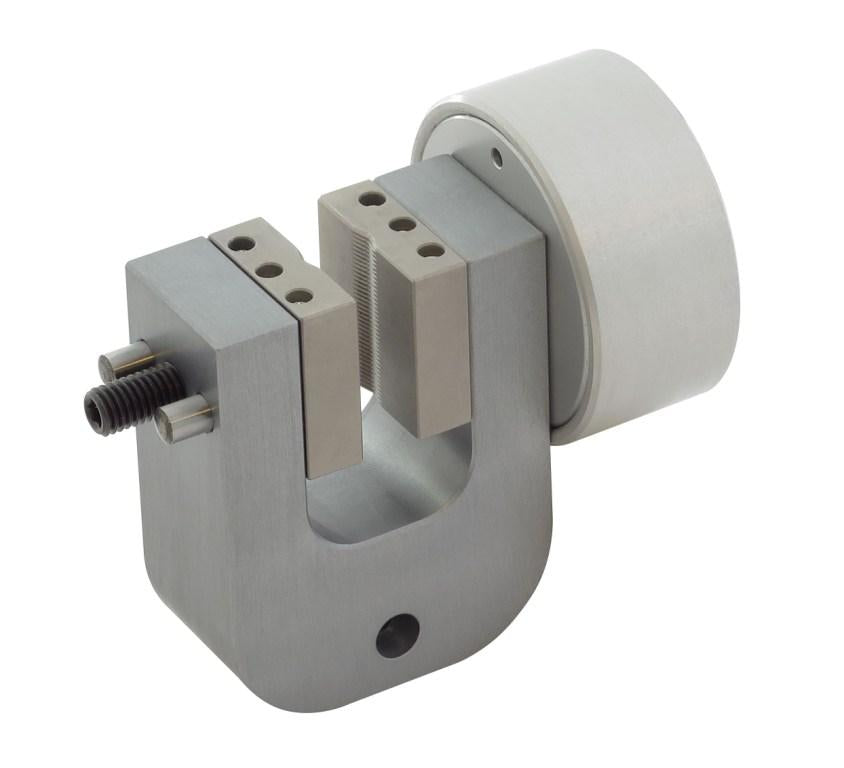

1.2 kN Pneumatic Vise Grip Body (Single Actuator)
1.2 kN Pneumatic Vise Grip Body (Single Actuator)
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Estimated Lead Time: 2 weeks
Technical Specifications & Overview +
- Model Number:
- G240k-P
- Load Capacity:
- 1.2 kN @ 7 bar (2.5 kN @ 16 bar max)
- Temp Range:
- 0°C to +70°C
- Max Opening:
- 0–10 mm (0–0.39 in)
- Jaw Surface:
- Blank, Rubber, Pyramid, V-Groove, Wave, Diamond
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Single pneumatic cylinder mechanism with spring return for rapid hand-free clamping.
- Applications:
- Pneumatic tensile testing of delicate plastic films, paper coupons, fine wire, and textiles
- Primary Materials:
- Plastics, Textiles, Packaging, Thin Films
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G240k-P pneumatic vise grip body features a single-action pneumatic cylinder with spring return, delivering 1.2 kN clamping force at 7 bar (boostable to 2.5 kN at 16 bar). Ideal for high-throughput testing of delicate films, paper, and fine wire.
Expert Engineering Note
Single pneumatic actuator design allows fast loading and unloading of lightweight specimens while maintaining constant pneumatic clamping pressure.
