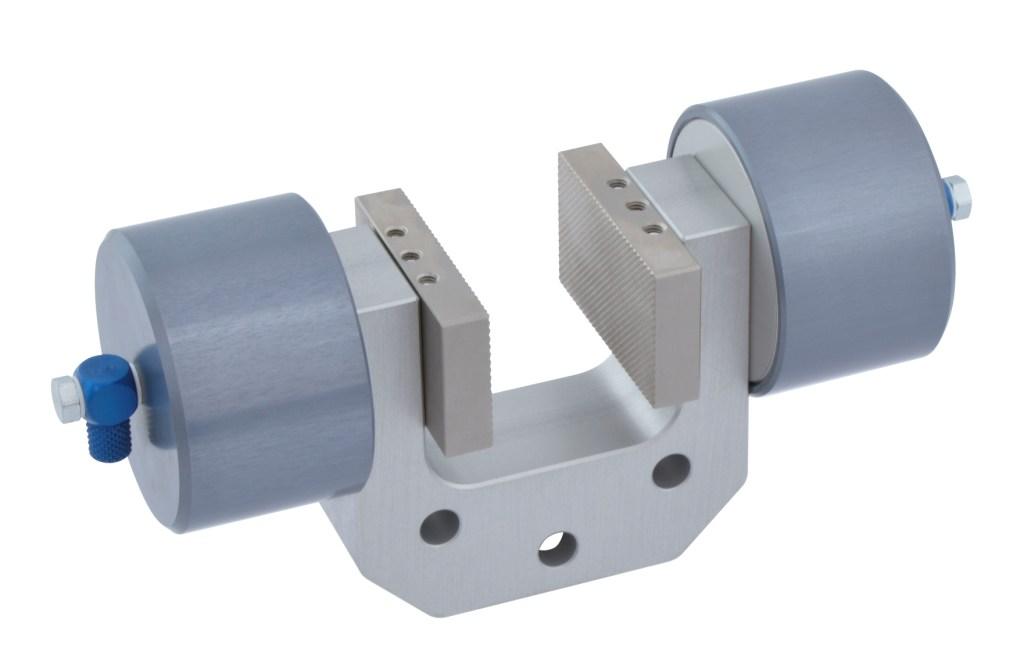

1.2 kN Pneumatic Vise Grip Body (S30 Opening, Dual Actuator)
1.2 kN Pneumatic Vise Grip Body (S30 Opening, Dual Actuator)
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Estimated Lead Time: 2 weeks
Technical Specifications & Overview +
- Model Number:
- G240k-S30-2P
- Load Capacity:
- 1.2 kN @ 7 bar (2.5 kN @ 16 bar max)
- Temp Range:
- 0°C to +70°C
- Max Opening:
- 0–30 mm (0–1.18 in)
- Jaw Surface:
- Blank, Rubber, Pyramid, V-Groove, Wave, Diamond
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Dual pneumatic actuators providing symmetrical center-line clamping across a 30 mm jaw opening.
- Applications:
- Symmetrical pneumatic tensile clamping of compressible foams, thick gaskets, and wide soft coupons
- Primary Materials:
- Foam, Rubber, Soft Polymers
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G240k-S30-2P pneumatic vise grip body utilizes dual pneumatic cylinders to symmetrically clamp soft foams and thick gaskets across a wide 30 mm opening clearance.
Expert Engineering Note
Simultaneous double-sided closing prevents asymmetrical specimen pre-straining during pneumatic fixture engagement.
