TestResources

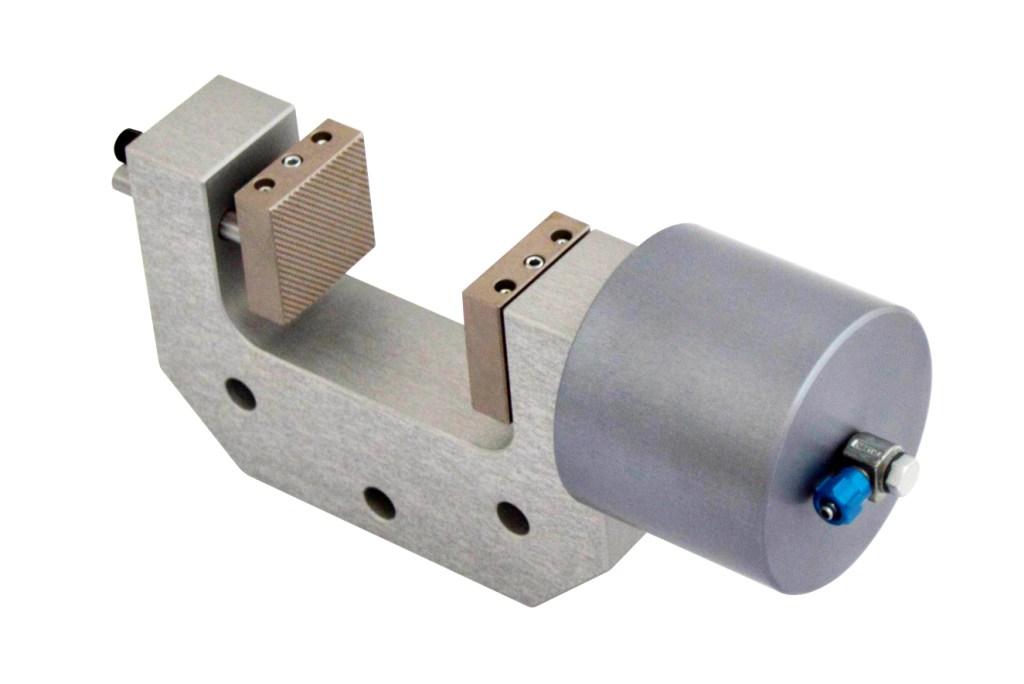

1.2 kN Pneumatic Vise Grip Body (S50 Opening, Single Actuator)
1.2 kN Pneumatic Vise Grip Body (S50 Opening, Single Actuator)
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Estimated Lead Time: 2 weeks
Technical Specifications & Overview +
- Model Number:
- G240k-S50-P
- Load Capacity:
- 1.2 kN @ 7 bar (2.5 kN @ 16 bar max)
- Temp Range:
- 0°C to +70°C
- Max Opening:
- 0–52 mm (0–2.05 in)
- Jaw Surface:
- Blank, Rubber, Pyramid, V-Groove, Wave, Diamond
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Single pneumatic actuator frame delivering maximum 52 mm opening clearance for extra-thick samples.
- Applications:
- Pneumatic tensile testing of extra-wide insulation, bulky textile webbing, and thick elastomers
- Primary Materials:
- Webbing, Insulation, Soft Elastomers
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G240k-S50-P pneumatic vise grip body features an ultra-wide 52 mm opening clearance for testing extra-thick soft insulation, bulky textiles, and elastomeric components.
Expert Engineering Note
Maximum opening frame clearance allows rapid loading of bulky soft samples into high-throughput pneumatic workflows.
