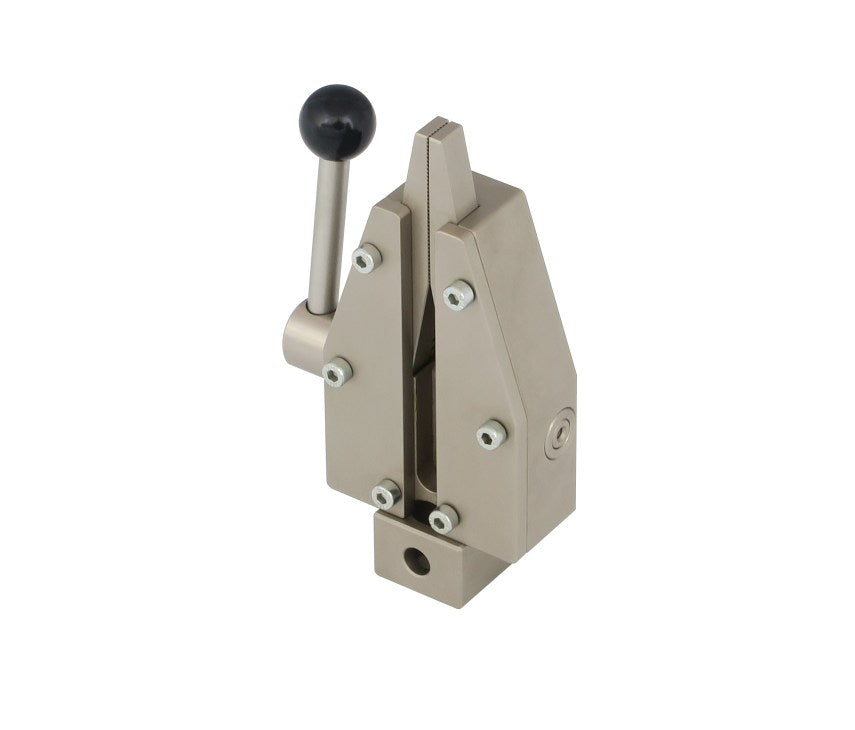

10 kN Manual Wedge Tensile Grip
10 kN Manual Wedge Tensile Grip
The G256-10 manual wedge grip body provides 10 kN tensile force clamping capacity across flat and round specimens. Engineered with nickel-plated hardened steel bodies and self-tightening wedge geometry this grip ensures zero specimen slip during tensile testing procedures.
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Technical Specifications & Overview +
- Model Number:
- G256-10
- Body Material:
- Steel, nickel-plated
- Load Capacity:
- 10 kN (2,250 lbf)
- Temp Range:
- 0°C to 130°C
- Max Opening:
- 0–8 mm (0–0.31 in)
- Jaw Surface:
- Blank, Pyramid, V-Groove, Rubber-Coated, Diamond-Coated
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Self-tightening wedge action grip for flat and round specimens
- Applications:
- Tensile testing of flat and round specimens, plastics, light metals, textiles
- ASTM Standards:
- ASTM E8, ASTM D638
- Primary Materials:
- Plastics, Polymers, Light Metals, Textiles, Composites
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G256-10 manual wedge grip body provides 10 kN tensile force clamping capacity across flat and round specimens. Engineered with nickel-plated hardened steel bodies and self-tightening wedge geometry this grip ensures zero specimen slip during tensile testing procedures.
Expert Engineering Note
Featuring self-tightening wedge action, initial clamping force increases naturally as tensile loads ramp up, making it ideal for self-clamping plastics and light metals.
