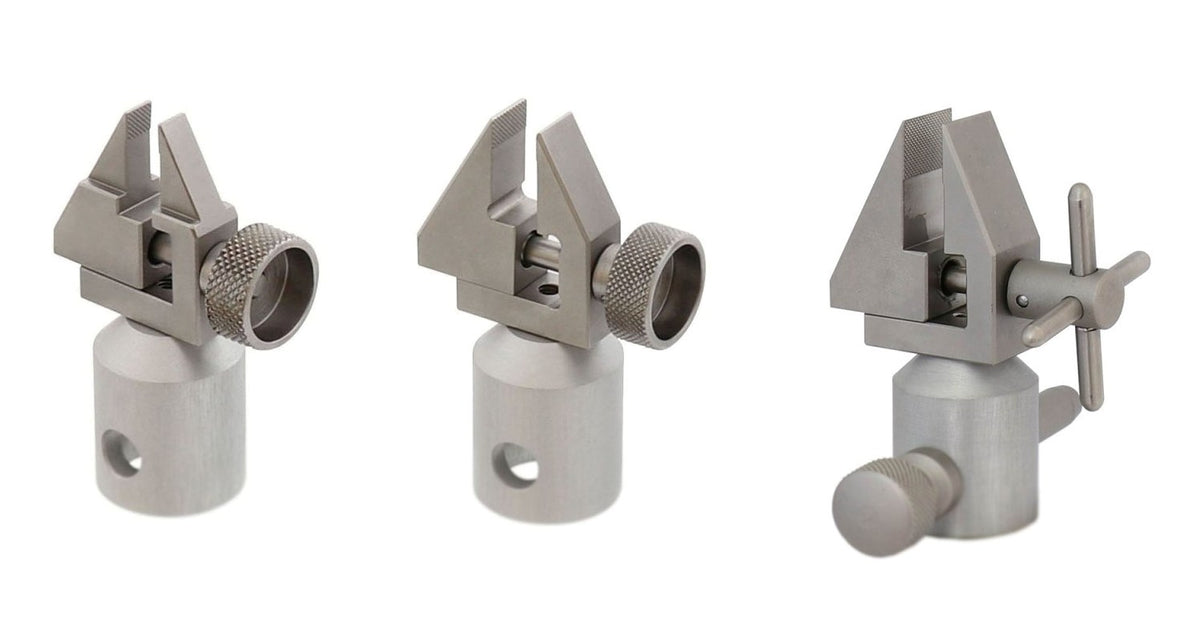

100 N Small Pincer Grip (15 mm W - Direct Mount)
100 N Small Pincer Grip (15 mm W - Direct Mount)
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.

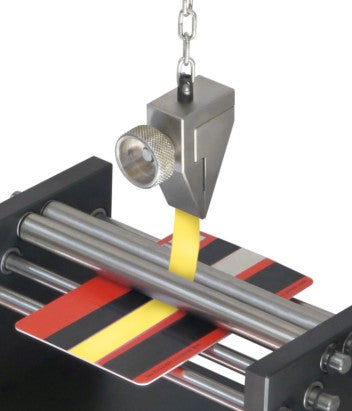

The G341-15-F mechanical pincer grip provides an expanded 15x10 mm pyramid serrated clamping face rated for 100 N. Direct adapter mounting ensures rigid alignment for pull testing on battery tab leads foils and polymer ribbons.
Quantity
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Estimated Lead Time: 2 weeks
Technical Specifications & Overview +
- Model Number:
- G341-15-F
- Body Material:
- Nickel-coated hardened steel
- Load Capacity:
- 100 N (22.5 lbf)
- Temp Range:
- 0°C to +180°C
- Max Opening:
- 0–3 mm (0–0.12 in)
- Jaw Surface:
- Pyramid
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Integrated 0.6x45° pyramid serrated jaws with 15x10 mm clamping face and direct adapter mounting.
- Applications:
- Micro-tensile testing of wider foil strips, polymer ribbons, and electronic tab leads
- Primary Materials:
- Polymer Ribbons, Metallic Foils, Tab Leads
- Recommended Machinery:
- Universal Testing Machines (UTM), Micro-Testers
- Lead Time:
- 2 weeks
Capability Overview
The G341-15-F pincer grip provides an expanded 15x10 mm pyramid serrated clamping face rated for 100 N. Direct adapter mounting ensures rigid alignment for pull testing on battery tab leads foils and polymer ribbons.
Expert Engineering Note
Expanded 15 mm width provides uniform clamping force distribution across wider thin-film samples.
