130 N Pneumatic Pincer Grip (20 mm W)
130 N Pneumatic Pincer Grip (20 mm W)

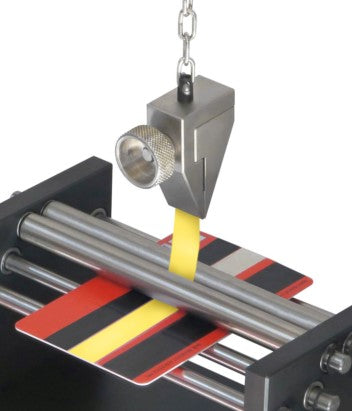

The G341-20-P pneumatic pincer grip body provides an expanded 20x5 mm pyramid serrated jaw face with 130 N pneumatic clamping force at 7 bar. Engineered for high-throughput peel and tensile testing on packaging seals and electronic ribbons.
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Technical Specifications & Overview +
- Model Number:
- G341-20-P
- Body Material:
- Nickel-coated steel
- Load Capacity:
- 130 N @ 7 bar (0.13 kN max)
- Temp Range:
- 0°C to +70°C
- Max Opening:
- 0–2 mm (0–0.08 in)
- Jaw Surface:
- Pyramid
- Interface Side A Type:
- Threaded Hole
- Jaw Notes:

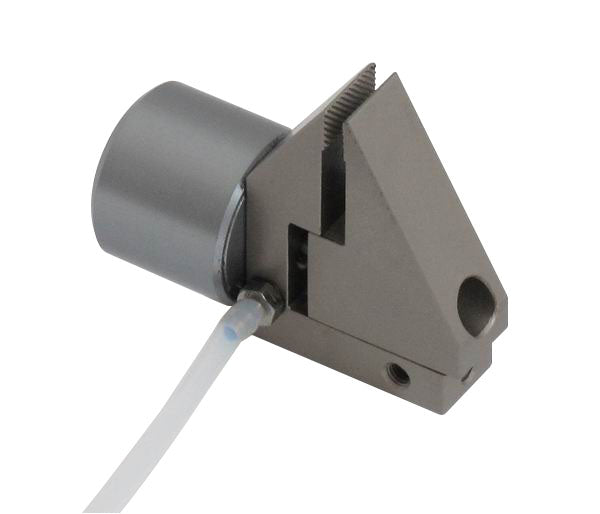

- Integrated 0.6x45° pyramid serrated 20 mm wide jaws powered by an anodized aluminum pneumatic cylinder.
- Applications:
- Pneumatic pincer clamping for wide delicate films, packaging seals, and electronic component ribbons
- Primary Materials:
- Films, Packaging Seals, Ribbons
- Recommended Machinery:
- Universal Testing Machines (UTM), Micro-Testers
- Lead Time:
- 2 weeks
Capability Overview
The G341-20-P pneumatic pincer grip body provides an expanded 20x5 mm pyramid serrated jaw face with 130 N pneumatic clamping force at 7 bar. Engineered for high-throughput peel and tensile testing on packaging seals and electronic ribbons.
Expert Engineering Note
Expanded 20 mm jaw width combined with pneumatic closing ensures repeatable hands-free specimen loading.
