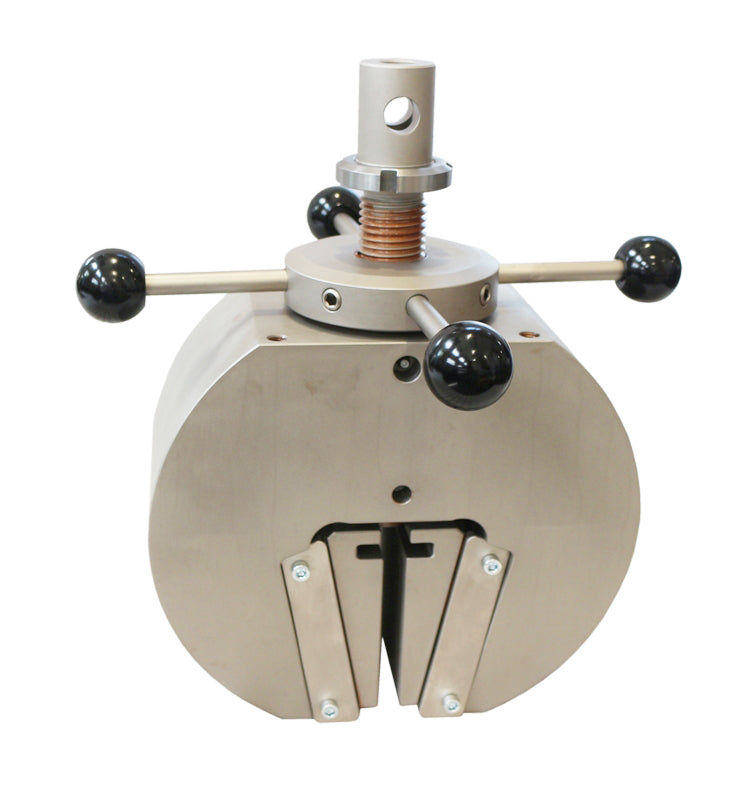

150 kN Non-Shift Wedge Grip
150 kN Non-Shift Wedge Grip
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
The G527-150 heavy-duty non-shift wedge grip body delivers 150 kN tensile force clamping capacity. Engineered for high-capacity testing of metallic coupons heavy polymers and structural composites.
Quantity
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Estimated Lead Time: 2 weeks
Technical Specifications & Overview +
- Model Number:
- G527-150
- Body Material:
- Steel, nickel-plated
- Load Capacity:
- 150 kN (33,750 lbf)
- Temp Range:
- 0°C to +130°C
- Max Opening:
- 0–28 mm (0–1.10 in)
- Jaw Surface:
- Pyramid, V-Groove
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Non-shift wedge grip. Body moves vertically, jaws move horizontally.
- Applications:
- Heavy-duty tensile testing of metallic coupons, composites, heavy polymers
- Primary Materials:
- Plastics, Light Metals, Composites
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G527-150 heavy-duty non-shift wedge grip body delivers 150 kN tensile force clamping capacity. Engineered for high-capacity testing of metallic coupons heavy polymers and structural composites.
Expert Engineering Note
Non-shift horizontal jaw movement protects delicate load cells and specimens from initial clamping pre-loads. Standard Af318 or Af40 female socket couplings.
