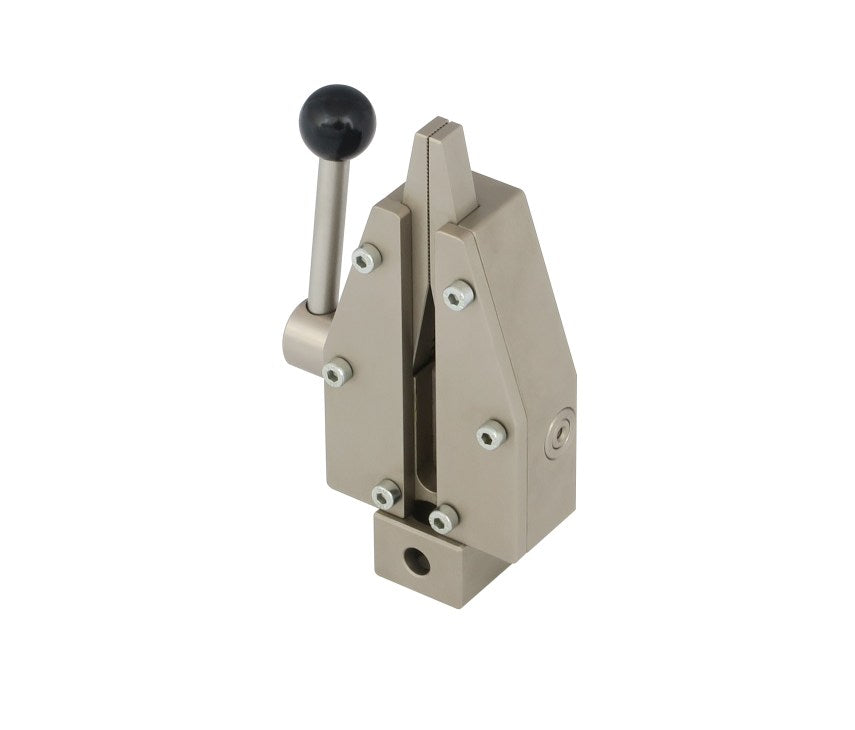

10 kN Manual Wedge Grip
10 kN Manual Wedge Grip
The G7W-10 manual wedge grip body provides 10 kN tensile force clamping capacity across small flat and round specimens. Engineered with nickel-coated steel bodies and self-tightening wedge geometry this grip ensures zero specimen slip during tensile testing.
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Technical Specifications & Overview +
- Model Number:
- G7W-10
- Body Material:
- Steel, nickel-coated
- Load Capacity:
- 10 kN (2,250 lbf)
- Temp Range:
- 0°C to +70°C
- Max Opening:
- 0–8 mm (0–0.31 in)
- Jaw Surface:
- Pyramid, V-Groove
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Self-tightening wedge action grip for small metal and plastic specimens.
- Applications:
- Tensile testing of small flat and round specimens, plastics, and low strength steel
- Primary Materials:
- Plastics, Light Metals, Low Strength Steel
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G7W-10 manual wedge grip body provides 10 kN tensile force clamping capacity across small flat and round specimens. Engineered with nickel-coated steel bodies and self-tightening wedge geometry this grip ensures zero specimen slip during tensile testing.
Expert Engineering Note
Self-tightening wedge action automatically increases initial clamping force as tensile load ramps up. Compact 1 kg design features standard Af159 female socket coupling.
