1.2 kN Dual-Piston Pneumatic Capstan Wire Grip
1.2 kN Dual-Piston Pneumatic Capstan Wire Grip

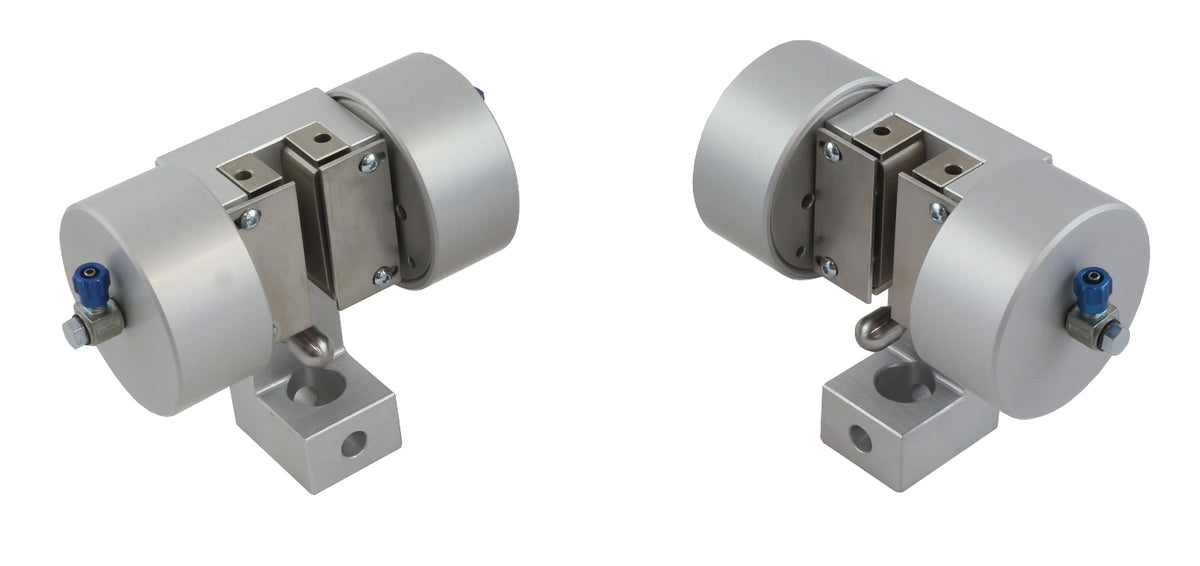

The G9G2P dual-piston pneumatic capstan grip body provides 1.2 kN clamping force. Opposed pneumatic cylinders close both clamping jaws symmetrically to preserve exact axial specimen alignment on delicate wires and medical threads.
Couldn't load pickup availability
Need Assistance or a Custom Quote?
Contact our engineering team at 952-944-6534 or visit our Contact Us page for:
- Official Price Quotes & Purchase Orders
- Tax Exemption Certificate Submissions
- Application & Machine Compatibility Verification
Technical Specifications & Overview +
- Model Number:
- G9G2P
- Body Material:
- Anodized aluminum
- Load Capacity:
- 1.2 kN (270 lbf)
- Temp Range:
- 0°C to +70°C
- Max Opening:
- 0–5 mm (0–0.20 in)
- Jaw Surface:
- Blank, Diamond-Coated
- Interface Side A Type:
- Female Socket
- Jaw Notes:
- Dual-piston pneumatic capstan grip for symmetrical double-action clamping of fine wire. Includes jaw carriers.
- Applications:
- Pneumatic tensile testing of fine wire, delicate filaments, medical thread, and bands
- Primary Materials:
- Fine Wire, Thin Ropes, Narrow Bands
- Recommended Machinery:
- Universal Testing Machines (UTM)
- Lead Time:
- 2 weeks
Capability Overview
The G9G2P dual-piston pneumatic capstan grip body provides 1.2 kN clamping force. Opposed pneumatic cylinders close both clamping jaws symmetrically to preserve exact axial specimen alignment on delicate wires and medical threads.
Expert Engineering Note
Dual opposed pneumatic pistons ensure concentric specimen clamping along the tensile load axis. Standard Af159 or Af20 female socket couplings.
